Super Seal™ Pro Induction Cap Sealer
The Most Intelligent Touch Screen Induction Sealer

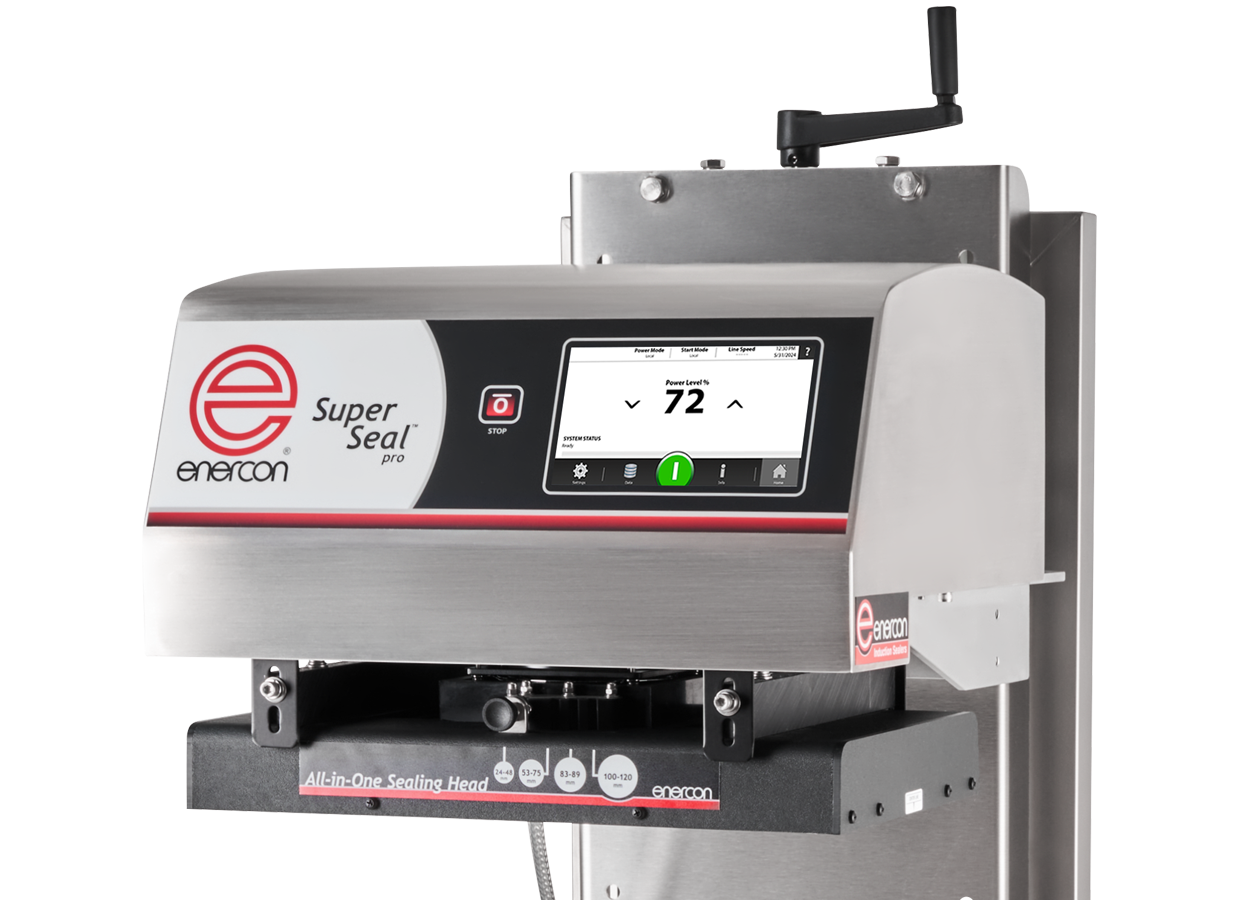

Enercon’s Super Seal™ Pro is the industry’s most advanced single-head induction cap sealer available today.
Designed to provide greater ease of use, enhanced control, and improved data connectivity, the Super Seal™ Pro includes a range of new features and upgrades:

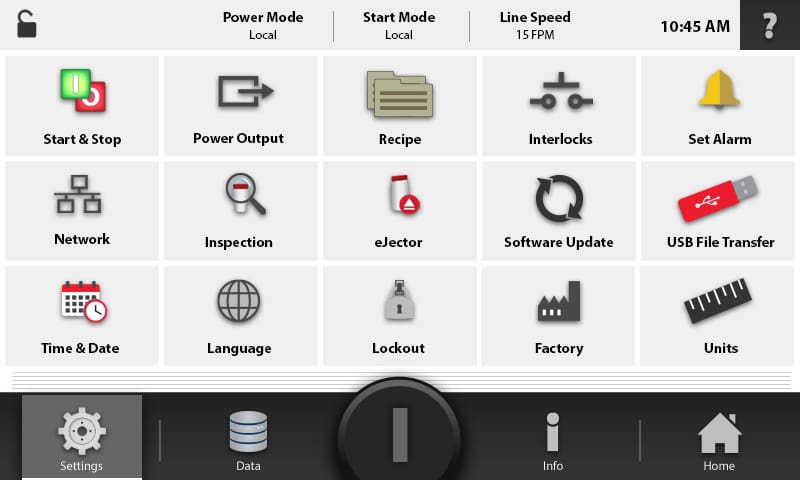

- An advanced 7-inch touchscreen that is faster, more responsive, and easier to use.

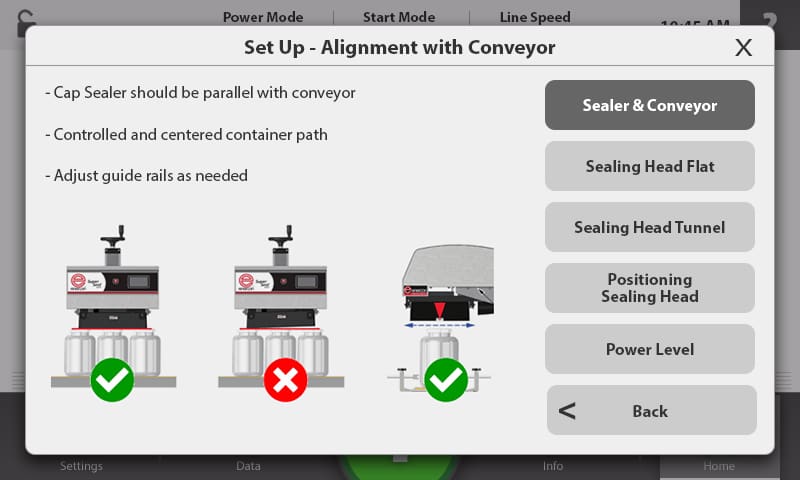

- Integrated features, including setup, operation, and troubleshooting guidance, as well as customisable maintenance reminders.
- Enhanced recipe management (50 recipes) and multi-level supervisory password protection
Beyond basic operating functions, the sealer’s interface includes integrated tools that improve data connectivity:
- New USB port enables easier in-field software updates, as well as the download of detailed event, fault, and maintenance logs.
- Smart Capture feature automatically records critical operating data before, during, and after a fault. This data can be downloaded via the USB port and shared with Enercon’s service team for faster troubleshooting.
- Expanded network connectivity options for remote control and monitoring, supporting virtually any network protocol.
| Specifications - Super Seal™ Pro | ||
|---|---|---|
| Dimensions | 580 x 880 x 1524-1874mm (WxDxH) | |
| Weight | 42 lbs. (19.07 kg) | |
| Input Voltage | Single Phase, 230V, 50Hz, 11amp | |
Enercon systems are designed to operate in a maximum ambient temperature of 40°C (104°F) @ 80% relative humidity, non-condensing.
System Functionality
-
Larger 7” touchscreen provides operators with setup, operation & troubleshooting support
-
Recipe management, remote start/stop and remote power control
-
Multi-level password protection with operator lockout
-
Integrated tools for improved data connectivity
-
USB drive for easy in-field software updates and downloads of event logs
-
Expanded network options for remote control and monitoring to suit virtually any network protocols
-
Smart Capture automatically takes snapshots of critical system data when a fault occurs
-
Stainless steel IP55 enclosure
-

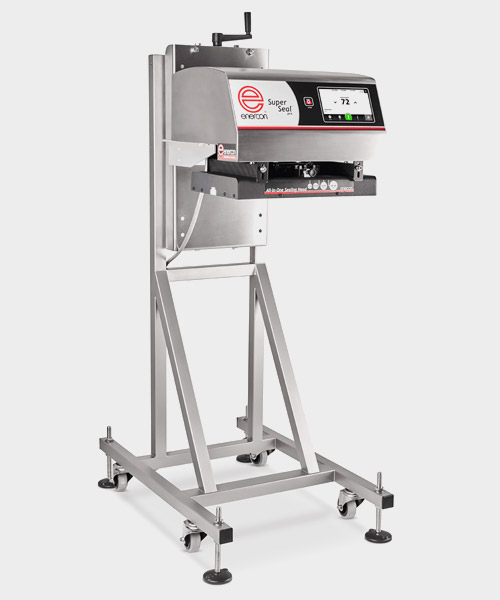

Fully adjustable stainless-steel stand for different container heights
Sealing Heads
Enercon offers the widest range of induction sealing heads available from any industry manufacturer. Our advanced designs enable machines to seal an extensive variety of cap sizes - from 15mm to 150mm in diameter - as well as unusual shapes and specialty closures that other induction sealers cannot. You can find out more about sealing heads here.
Flat
Tunnel
Deep Tunnel
All-in-One
OPTIONAL EXTRAS Cap Inspection System
A range of sensors designed to enhance safety and quality control. Available as a complete system or with selected sensors available for individual purchase.
Stalled Bottle Detection
Detects when a bottle doesn’t exit the sealing head within a preset time. The sealer is automatically turned off and will display a “stalled bottle fault.”
Bottle Backup Detection
Detects containers if they backup under the sealer and automatically turns the sealer off should this occur.
Foil Liner Detection
Detects foil liner presence and when a liner is not detected in cap, an output signal is sent to the customer’s line control that can be used for data collection, alarm, or container rejection.
Cocked Cap Detection
Detects if a cap is not properly seated on the container. If a misaligned cap is detected an output signal is sent sent to the customer’s line control that can be used for data collection, alarm, or container rejection.
Deluxe Cap Inspection System
The Deluxe Cap Inspection works with the Super Seal™ Pro and Super Seal™ Max and with all Enercon induction sealing heads. Note: for deep tunnel sealing heads, this inspection system is the only option for detecting missing foils.
The Deluxe inspection system offers all the features of the standard inspection system mentioned above, plus:
Deluxe Cocked Cap Detector
Offers superior sensitivity and provides a numeric readout of the percent of light reaching the sensor which simplifies setup by allowing you to set a specific cap height limit for your application.
Installation Flexibility
For integrating inspection and rejection components upstream. This is ideal for larger containers.
Operation
Stack Light Assembly
Provides a green light when the unit is operating correctly and a red light when no power is supplied to the sealing head. An 85dB audible alarm can also be added to the Stack Light.
Digital Height Readout
An electronic digital height readout for mounting onto the machine stand.
Mobile Kit
Allows the induction sealer to be easily moved between production lines, without the need for other handling equipment. Lockable when in position.
Validation Package
Includes the documentation required for IQ/OQ/PQ.
Integrated Network Control & Monitoring
Connect your cap sealer with virtually any fieldbus or industrial ethernet network such as MODBUS TPC, PROFINET or EtherNet/IP. Works with any customer-supplied software for network control and monitoring. Simple network control also available from a PC. Read the Enercon Cap Sealer Network & I/O Control Comparisonto explore options.
Maintenance
Extended Warranty
A 12-month extended warranty, providing a total warranty period of 24 months on all parts from the date of dispatch.
Spare Parts Kits
Be prepared with backup parts. Receive a discount when purchased alongside your sealer.
Preventative Maintenance Package
Annual service inspection and operator training to ensure your sealer to help optimise performance and extend the life of your sealer.
